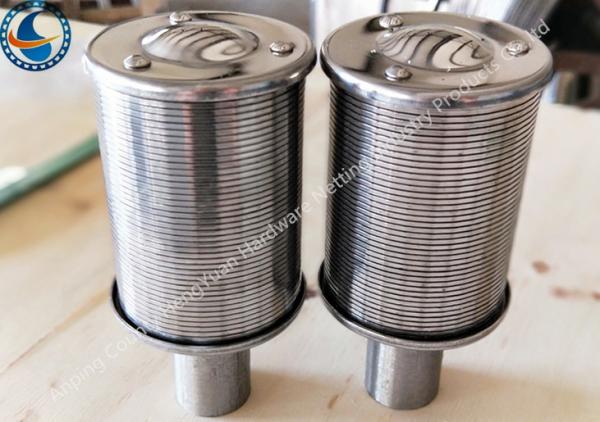

Wedge Wire Screen Nozzle/Water Nozzle/Nozzle Stainer /SS Wedge Wire Screen Nozzle
Type: Standard,Economy,Toggle Bolt,Custom
Materials: 304/304L,316/ 316L,321,410S,Hastelloy C-276,Duplex,Super Duple,Alloy B3,
Monel 400,Alloy 20
Wire Profiles :No.30,40,47,60,69,90,177,Q25,Q35,118,130
Benefits of our nozzle’s design include:
Continuous slot design provides increased open area for better collection.
Stronger and more durable
The wide range of profile wires are available to suit most applications
Non-clogging: the continuous slot formed by the V-shaped surface wires ensures a two-point contact between the particles and the slot which minimizes clogging
High-precision slot sizes slot sizes are available to meet customer's requirements
Surface filtration: the V-shaped surface wires allow easy cleaning by mechanical scraping or backflushing
Low pressure-drop
| No. | Type | Ton | Slot Opening | Size | 0.2-0.25mm slot opening Area of through-flow mm2 (reference) |
| D | L1 | L | M |
| 1 | TYS45-1-C | 0.5 | 0.2-0.5 | 45 | 45 | 95 | 24 | 550-690 |
| 2 | TYS53-2-B | 1 | 0.2-0.5 | 53 | 45 | 100 | 24 | 680-710 |
| 3 | TYS53-2-C | 1.5 | 0.2-0.5 | 53 | 50 | 110 | 32 | 800-920 |
| 4 | TYS57-3-B | 2 | 0.2-0.5 | 57 | 45 | 110 | 32 | 660-790 |
| 5 | TYS70-4-B | 3 | 0.2-0.5 | 70 | 55 | 120 | 32 | 905-1100 |
My WhatsApp:+86-13513087789 Skype:cherryhan09
-------------------------------------------------------------------------------------------------------------------------------------------
Our factory Hengyuan hardware netting industry product co., Ltd located in Anping county, Hebei Province, China.
Our mainly products are :stainless steel vee sharped wire /wrap wire,Johnson screen ,water well screen/rod based wire wrapped screen,wedge wire screen pipe,reverse wedge wire screen,screen nozzle /water and gas strainer,sieve plate,slot mesh,ARC screen,header and hub laterals &hub radial laterals,pipe base ,crimped wire mesh/stainless steel wire mesh/perforated wire mesh etc.
